UGV Devkit - Component Re-configuration

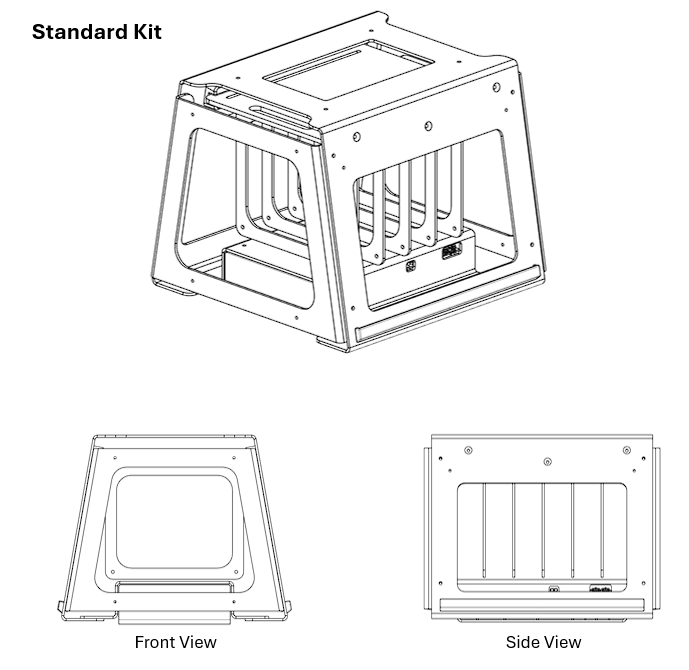

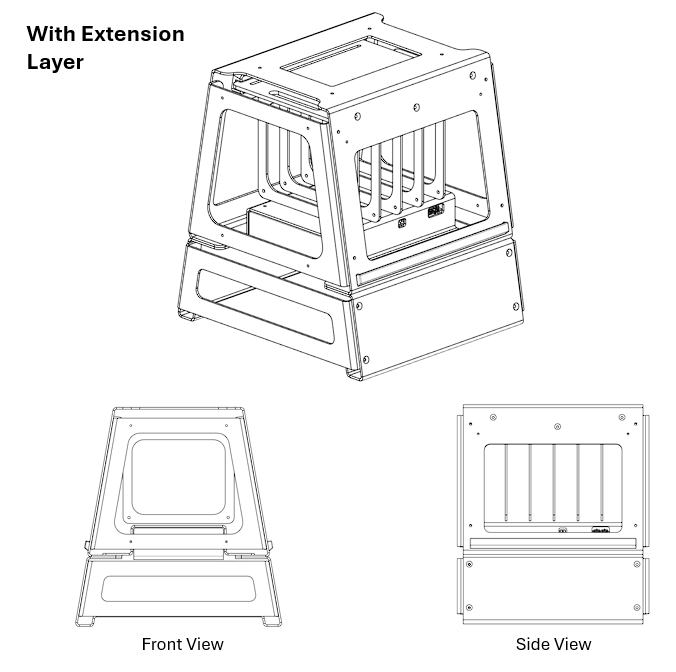

Main Frame for Component Mounting​

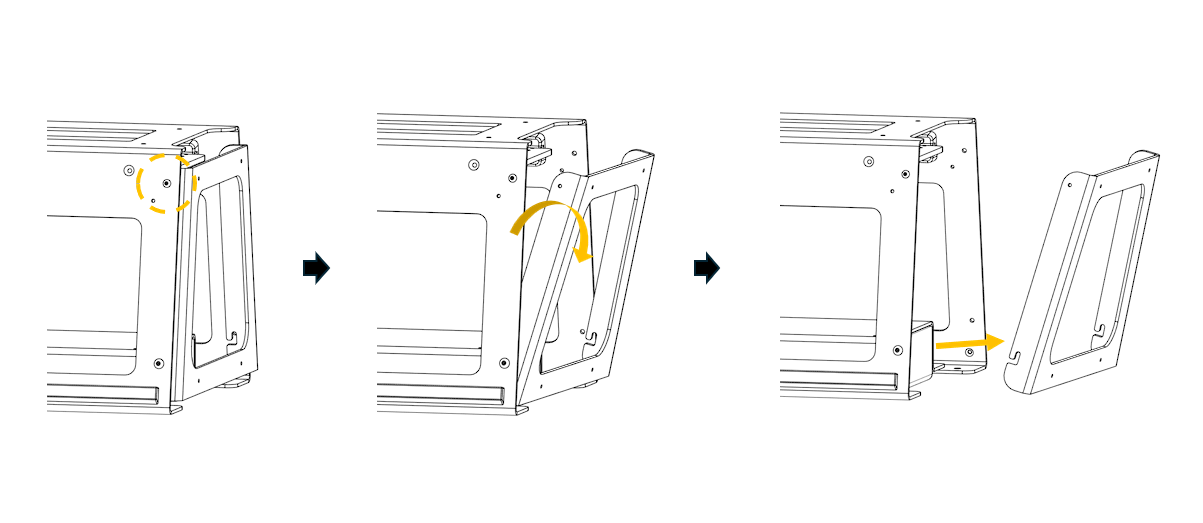

Removal of Front/Rear Latches​

  • Remove fasteners (2 x M5 bolts) from top of case.
  • Tilt latch outwards.
  • Lift latch to separate it from main frame.

Accessing Components in Kit​

  • Internal hardware/wiring can either be accessed through the side or by sliding out hardware rack

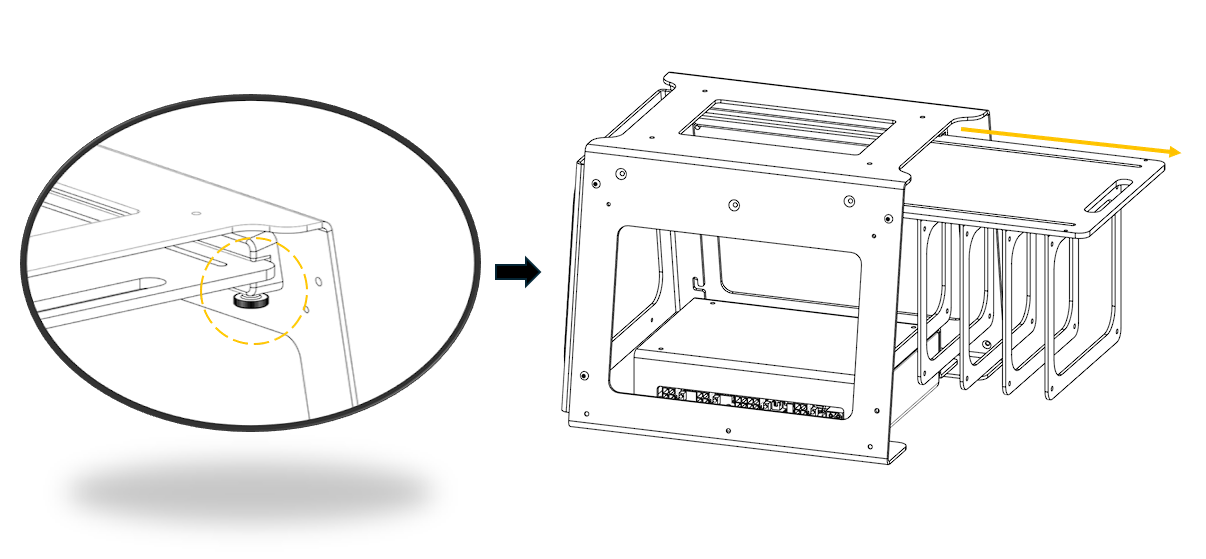

  • To remove hardware rack:
    • Remove the locking thumb screw
    • Proceed to slide out rack

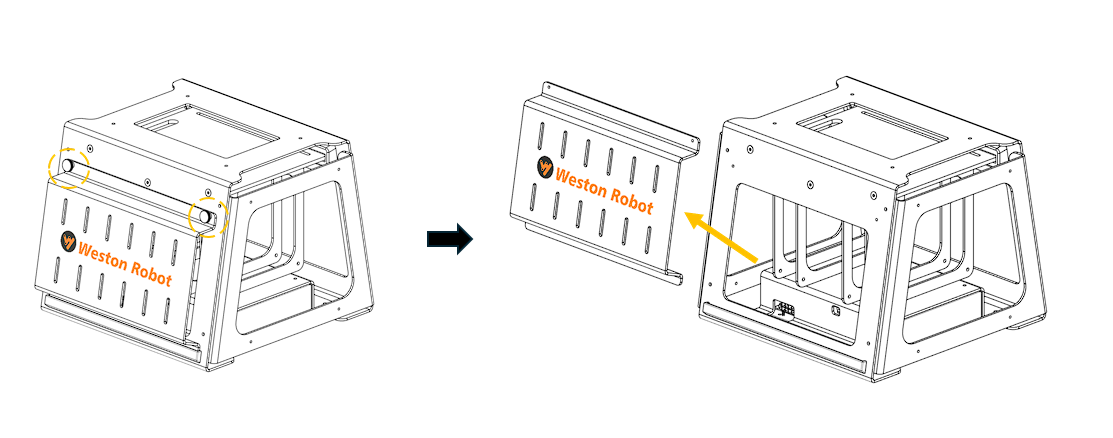

  • To remove side doors
    • Remove the locking thumb screws
    • Proceed to remove door

Note: Please be reminded to remove connections such as power cables and connectivity ports before sliding out hardware rack!
