Deployment Toolbox

A 3D scan of a building is just points. A robot needs to know where the floor is, where it may drive, where it must not go, and which places matter. Somebody supplies that meaning once per site, and this is the tool they use.

What comes out is the site map — the artifact everything else depends on. It is pushed to the Fleet Management System, and reaches the robots from there.

Preparing a site is a once-per-site job rather than a once-per-mission one, and the map is revisited afterwards only when the building itself changes — new racking, a wall moved, a door now permanently shut. Editing a site's map requires the Site Admin role for that site; operators and observers use maps without changing them.

Key features of the toolbox are summarized in the table below, and each is covered in its own section.

Feature	What it gives you
Map inspector	Opens a map to examine it and check that routes solve
Map editor	Turns a 3D scan of a site into the map robots navigate by

Map layers

A site map is not one file. What travels between the Toolbox and the fleet is a bundle of layers, and each answers a different question.

Layer	What it is	Where it is used
Navigation graph	The TMG document: nodes, segments, zones and levels	What the robot navigates by, and what the fleet reads a site's waypoints and routes from
Point cloud	The 3D scan the map was authored against	Loaded back into the editor, so a later revision is drawn against the same scan
Occupancy grid	A flat grid of what is free and what is blocked, one per level	Drawn beneath the graph, so its nodes, segments and zones can be read against the building

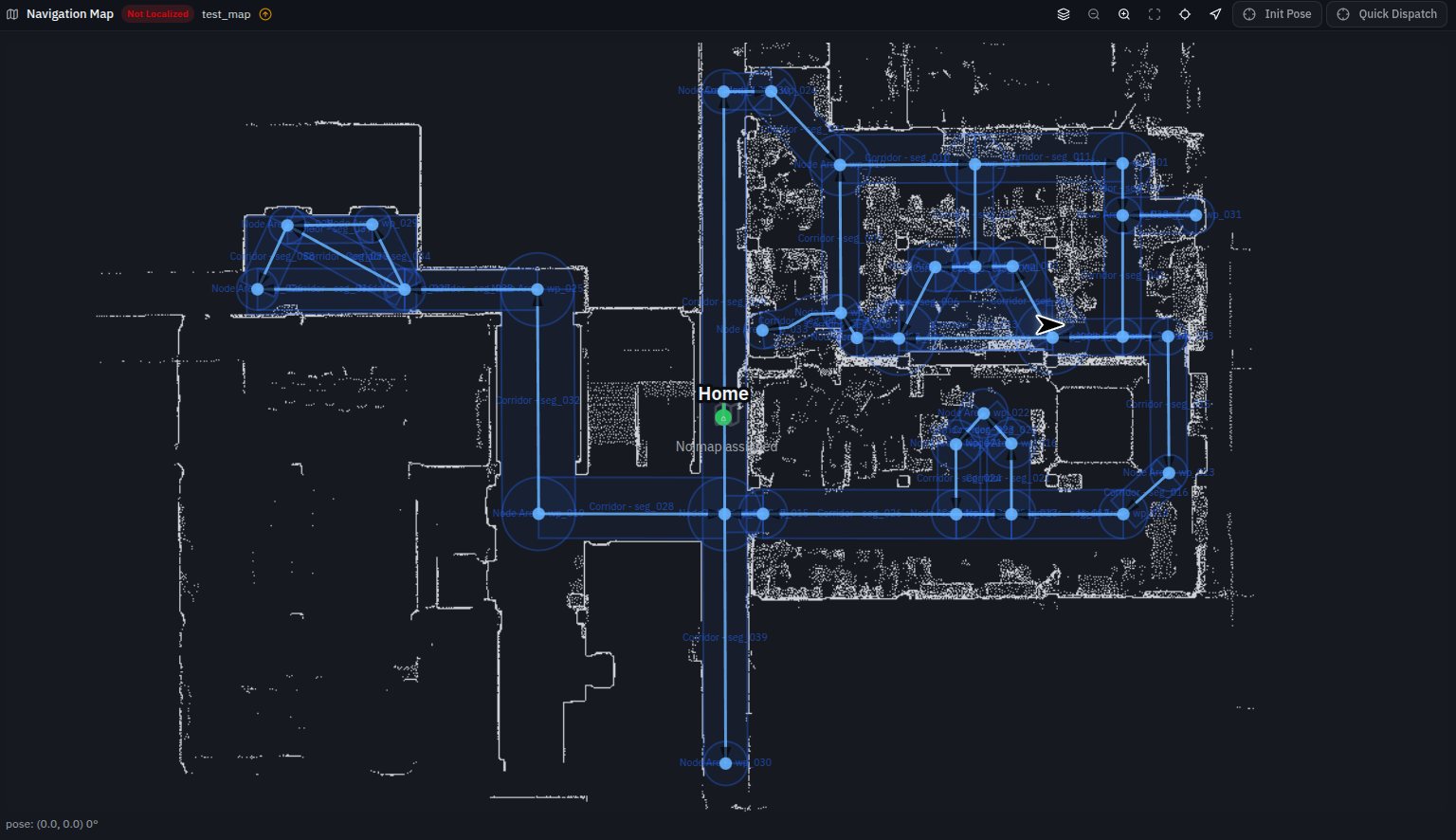

The two layers together. White is the occupancy grid — the building. Blue is the graph — the nodes, segments and zones the robot reasons about.

The graph is written in TMG — Topometric Navigation Graph, a map specification Weston Robot defines and publishes. It is topometric because it carries both the topology, meaning which places connect to which, and the metric detail, meaning exactly where each of them is. The graph is the map; the rest is the ground it was drawn over — a separation that shows in practice, since a bundle whose occupancy layer is missing still opens as a usable navigation graph, with the absent underlay reported rather than the whole map refused.

The occupancy grid's role today is visualisation: the fleet and the toolbox draw it under the graph so a node or a zone can be related to the floor plan it sits on rather than read as bare coordinates, while a robot navigates from the graph. One further surface is computed rather than stored — the height grid, derived from the point cloud against the level being edited, is what surface snapping uses to settle a node onto the floor, and it exists only while you are working.

Map elements

The navigation graph is where a map's meaning lives, and these are the elements it is built from. TMG exists because the formats already available describe a space without describing what is allowed to happen in it: a point cloud says where the walls are, not that this doorway is a route and that one is off limits.

Element	What it is
Node	A point the robot can be sent to — a waypoint, or a charging station
Segment	A connection between two nodes: the ways the robot may travel
Zone	An area whose boundary applies rules inside it, including no-go
Level	A floor. Nodes and zones each belong to one
Transition	How a robot moves between levels

Most zones on a finished map were never drawn by hand — one is generated around every node and along every segment, marking the envelope the robot may drive within. The ones you do draw are how you say "slow down here" or "never go here".

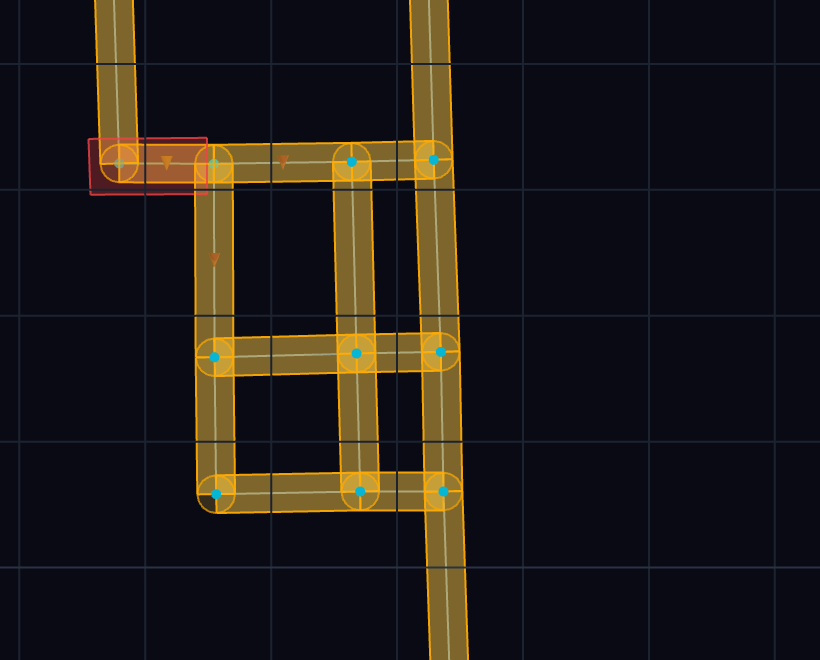

Nodes are the points; the lines joining them are segments. Everything shaded is a zone — one around each node, one along each segment. The red rectangle is the only zone on this map that someone drew.

This release supports one level per site, because robots do not use stairs or lifts on their own. Transition exists in the format for sites that span floors and has no use in a single-level one; a ramp within a level is not a change of level.

Data exchange

The Toolbox and the Fleet Management System exchange maps at two moments and are otherwise independent of each other.

Moment	Direction	What moves	Which tool
Import from fleet	Fleet → Toolbox	An existing map bundle, pulled down to work on	Editor or inspector
Push to fleet	Toolbox → Fleet	The finished map, as a new draft revision	Editor only

Only the editor writes back. The inspector can pull a map down to look at it, and never sends one anywhere.

Nothing passes between them in between. A map open in the editor is a copy: it does not follow changes made in the fleet while you work, and the fleet knows nothing of your edits until you push them. Work in progress lives in your own browser rather than on a server, so the two systems share no state at all between an import and a push.

That is deliberate, and it has one practical consequence worth planning around: whoever edits a site's map should import it at the start of the session rather than reusing yesterday's copy, because nothing will tell them if it has moved on. It is also why two people editing the same site's map at the same time is a bad idea — neither would know.

The Toolbox never talks to robots. It pushes to the Fleet Management System, and robots are updated from there; there is no path from this tool to a machine in the field. A pushed map arrives as a draft revision, and someone in Fleet Management then publishes it and activates it — activation being what puts a map in front of robots, and neither step something the Toolbox can take.

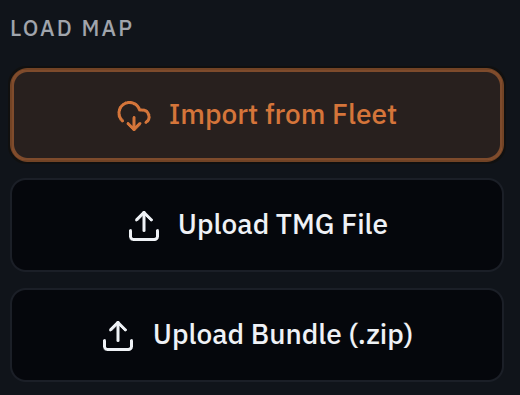

One end of the exchange: a map comes in from the fleet, or from a file on your machine.

Publishing to the fleet covers the four things the push asks for, why the change summary is worth writing properly, the three steps from draft to activated, and what activation costs a robot.

Map inspector

The inspector answers whether a map is sound, without changing it. It opens one from the fleet or from a file, reports what it holds — how many nodes, segments, zones and levels, and every element by name — and tests whether a robot could actually travel between two points you pick. That second job is the one that earns it: a map whose segments do not quite meet looks connected on screen and cannot be navigated, and this is where that surfaces in seconds rather than during a patrol.

The inspector reading a map: what it holds, every element by name, and the graph drawn out.

Map inspector covers the two modes, where a map can be opened from, how to choose which routes to test, and when reaching for it is worth the time.

Map editor

The editor is where a site map is made: it takes a 3D scan of a building and produces the graph a robot navigates by. That means cleaning up the scan, establishing the floor it sits on, and then placing the nodes, segments and zones themselves — work that is staged, so a map can be picked up and revised later rather than rebuilt from the beginning each time the building changes.

The editor at work. The stage bar runs across the top; the map is drawn against the scan and the occupancy map beneath it.

Map editor covers all five stages with a worked example, what each needs before it will open, how the occupancy map is generated, what surface snapping is for, and what validation checks before you export or push.

Support

Before raising a ticket, note which site and map are involved, and whether the problem is with drawing it, pushing it, publishing it or activating it — those are four different stages, and only the first two happen in this tool. Before you contact us lists what helps.
